CNC motion controller DDCS V3.1
CNC motion controller DDCS V3.1
Regular price
€355,00 EUR
Regular price
Sale price
€355,00 EUR
Unit price
/
per
DDCS V3.1
G-code capable, three or four axis offline CNC motion controller
- Maximum output pulse 500kHz
- 5 inch TFT display (480x272 pixels)
- 16 optically isolated inputs
- Optically isolated outputs (number of outputs depending on 3/4 axis version)
- Analogue 0-10V output for main spindle speed control (reconfigurable to PWM signal output)
- External MGP (Included)
- G-code file reading via USB from USB flash drive (no size limit)
- Version 3.1 improved algorithm, support for soft interpolation, fixed arc interpolation bug in old version
- 5V pulse outputs
- 24V IO system, external power supply required
- Spoise compensation
- Automatic position save in case of power failure
- Multifunction buttons (17 functions)
- Automatic position save
- ARM9 chip, FPGA architecture
Power supply: 24VDC

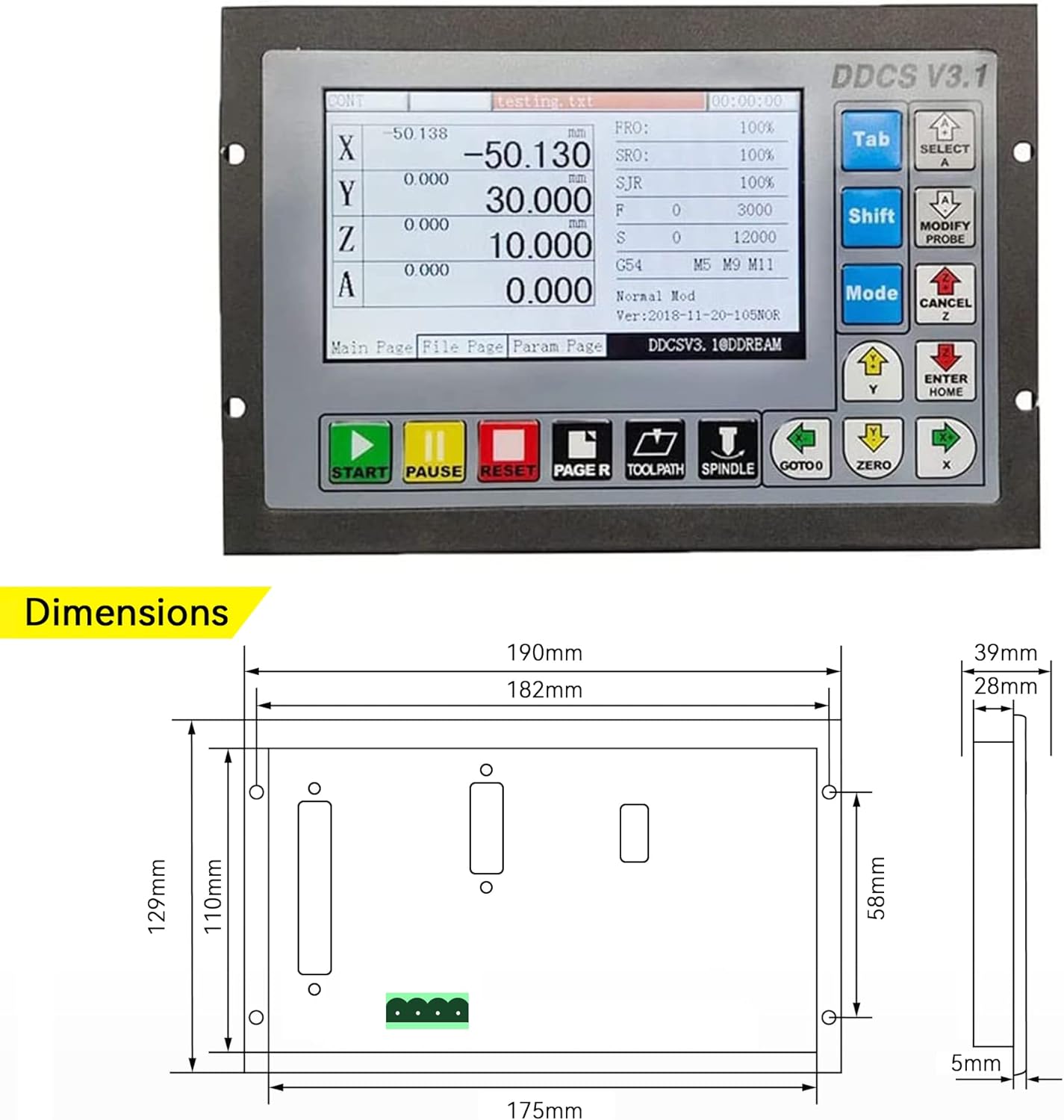

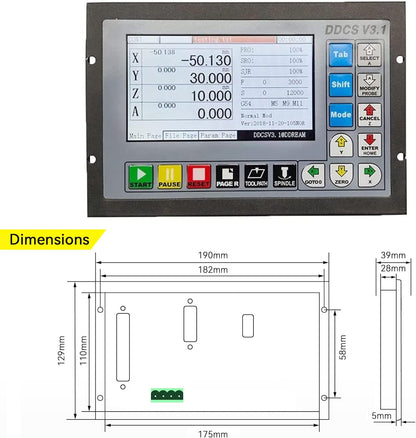

External dimensions: 191 x 128mm
Mounting dimensions: 175 x 110 x 37mm

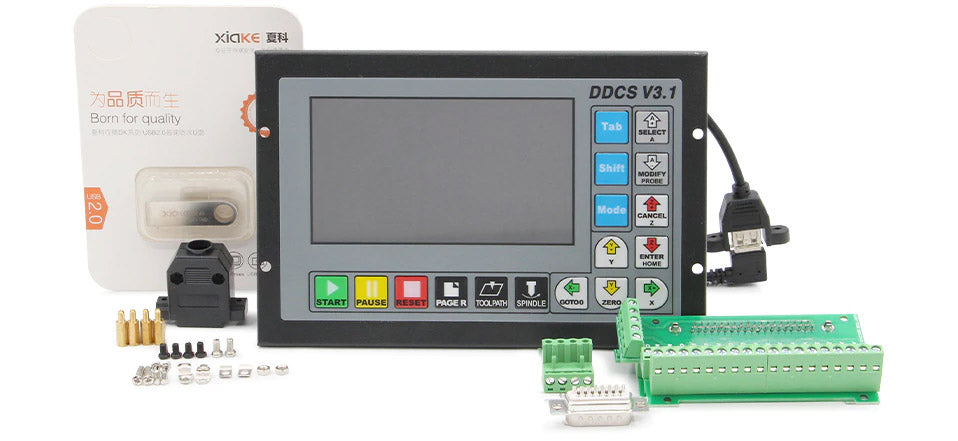

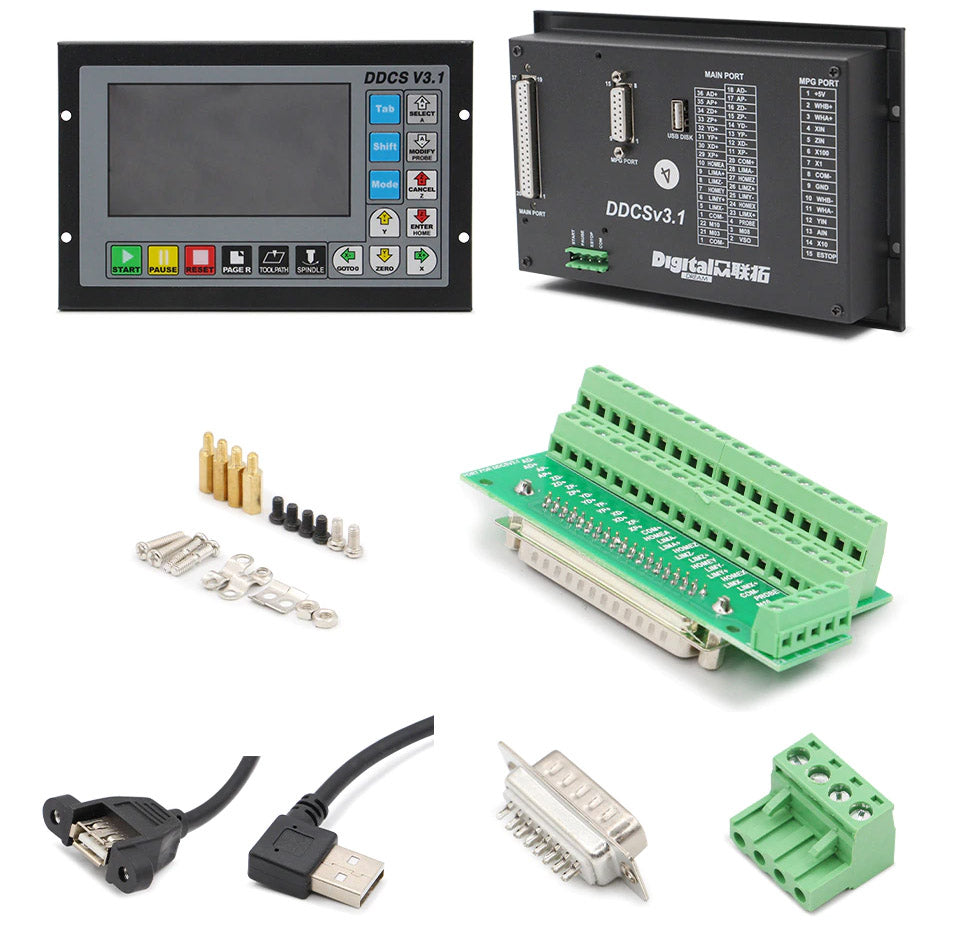

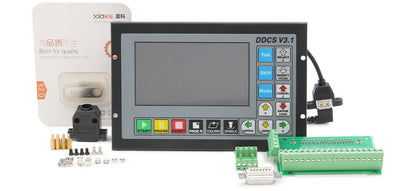

Accessories:
- fixing elements
- connectors
- panel mountable USB extension cable
- 4GB thumb drive
